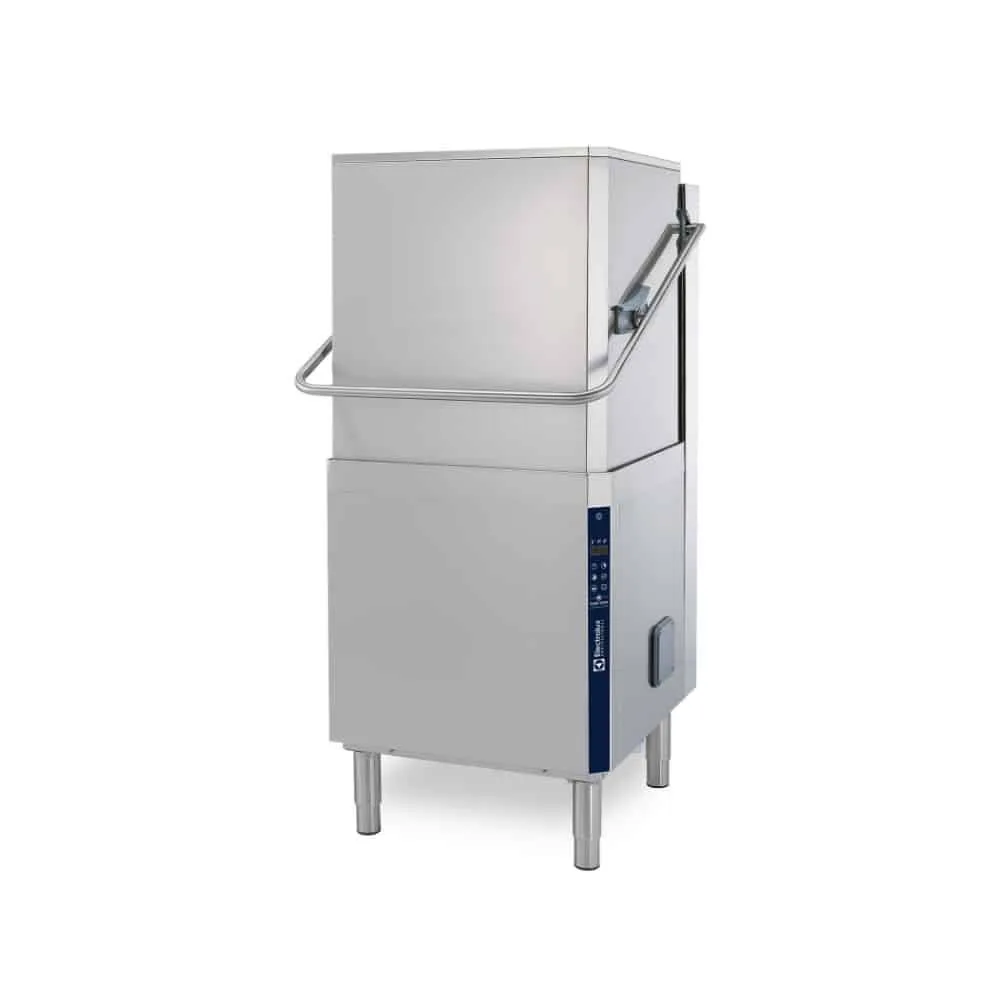

Hood Type Dishwasher, 520500 (EHT80ROW)

Description

Product: Hood Type Dishwasher

Model: 520500 (EHT80ROW)
Supply voltage: 400 V/3N ph/50 Hz
Convertible to: 230V 1N~; 230V 3~
Default Installed Power: 9.9 kW
Boiler Heating Elements Power: 9 kW
Tank heating elements: 3 kW
Water supply temperature*: 10-65 °C
Drain line size: 20.5mm
Inlet water supply pressure: 0.5-7 bar
Water consumption per cycle (lt): 2
Boiler Capacity (lt): 12
Tank Capacity (lt): 24
N° of cycles: 3
Duration cycle:* 45/84/150 sec.
Duration cycle – NSF/ANSI 3 compliant: 57/84/150 sec.
Racks per hour:* 80
Racks per hour – NSF/ANSI 3 compliant: 63
Dishes per hour:* 1440
Dishes per hour – NSF/ANSI 3 compliant: 1134
Wash temperature: 55-65 °C
Wash temperature – NSF/ANSI 3 compliant: 75 °C
Rinse temperature: 84 °C
External dimensions, Width: 746 mm
External dimensions, Depth: 755 mm
External dimensions, Height: 1549 mm
Net weight: 106 kg
Shipping volume: 1.21 m³
Noise level: <68 dBA

** When connected to cold water, the cycle time will be prolonged accordingly. The machine will have productivity per hour of 48 racks at 10°C supply temperature or 55 racks at 20°C supply temperature.
