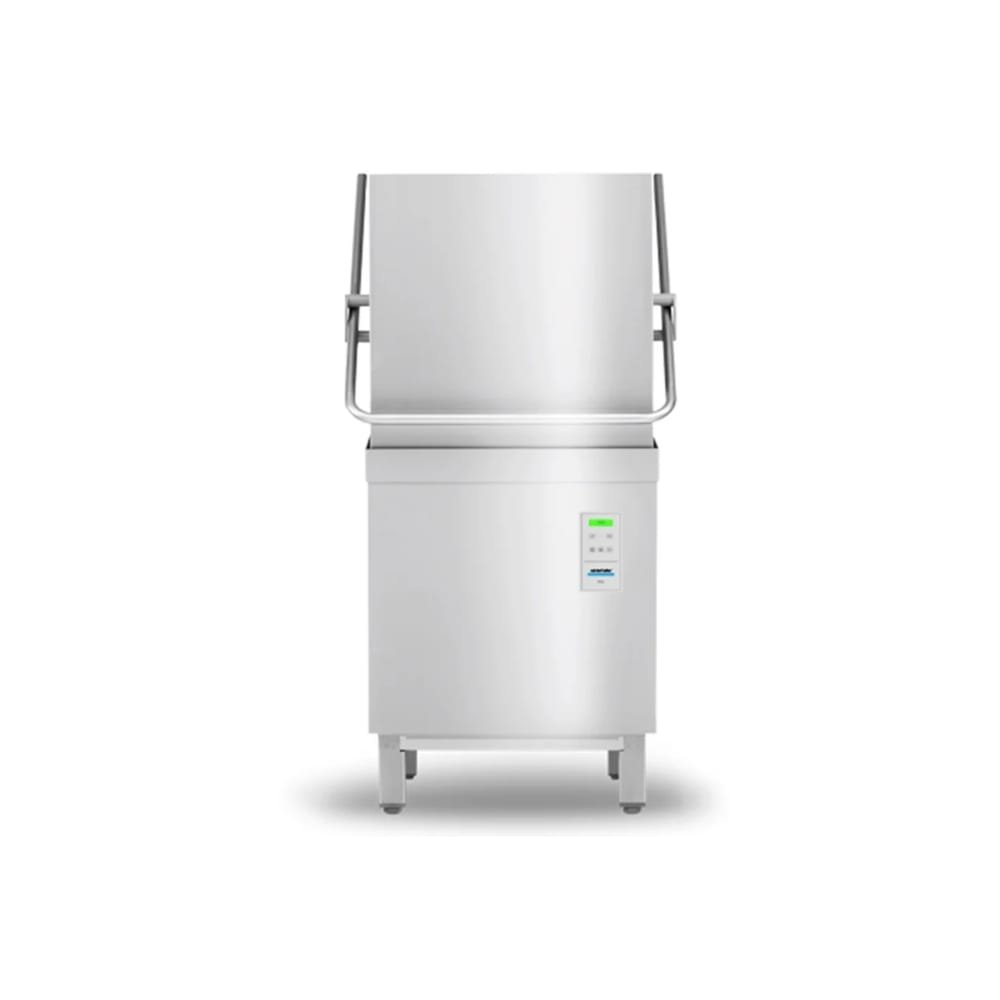

Winterhalter Hood Type Dishwasher, P 50

TECHNICAL DATA
Number of programmes: 2
Theoretical capacity*1 standard / HighTemp (racks/h): 60 / 20
Rack dimensions (mm): 500 x 500

Water consumption
Tank capacity: 28L
Rinse water volume*2 per wash cycle Standard / HighTemp: 2.4L / 3.8L

Temperatures
Tank temperature standard / HighTemp (°C): 62 / 66
Rinse temperature (°C): 85
Max. water inlet temperature (°C): 60

Other information
Circulating pump (P1): kW 0.6
Noise emission dB(A): max. 63
Packaging dimensions (mm): 770 x 880 x 1605
IP protection class: IPX5
Weight net/gross (kg): 98/123

ELECTRICAL SPECIFICATIONS
Supply: 220 V – 240 V, 3~, 60 Hz
Fuse: 25A/32A
Tank: 2.5 kW
Boiler: 9.0 kW
Total connected load: 9.3 kW /11.8 kW
