Spar Mixers Planetary Mixer, SP-30HA, Commercial Kitchen Equipment

● Motor 1 HP (750W), grease packed ball bearing, air-cooled, 230V/50Hz/1Ph, 220V/380V/50Hz/3Ph

● Controls Spar Mixer controls are front-mounted to give easy access in cramped kitchen environments. The following controls are standard on all Spar Mixers: separate start and emergency stop buttons so operators can shut down the mixer immediately in an emergency situation, a 15-minute timer which shuts off the machine after set time has elapsed, and thermal overload protection

●Cord and Plug 6 ft. flexible three wire cord and ground prong.

●Transmission Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by an oversized cog-wheel, which is in turn driven by a cogged belt powered by the motor drive shaft. Cogged belt is a long-lasting, rugged fibre/rubber composite. This unique design yields high-torque mixing power while avoiding the high cost encountered repairing direct-drive transmission components.

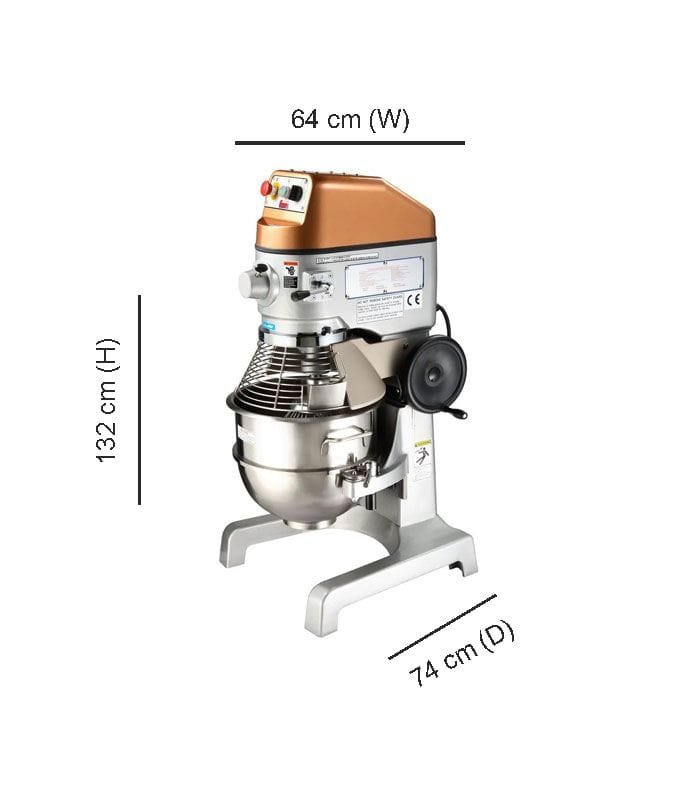

● Weight: 220 kg Dimensions: 64 × 74 × 132 cm

● Speed Low Speed: Agitator rpm-99, Slicer/Grinder rpm-69
Intermediate Speed: Agitator rpm-176, Slicer/Grinder rpm-123
High Speed: Agitator rpm-320, Slicer/Grinder rpm-224

• Powerful custom built motor – 1 HP
• Three fixed speeds
• High torque transmission
• Heat-treated hardened steel alloy gears and shafts
• Permanently lubricated transmission
• Thermal overload protection
• Rigid cast iron body
• Stainless steel bowl guard with built in ingredient chute
• NSF approved enamel gray paint (optional)
• Front mounted controls
• 15 minute timer
• Industry standard #12 attachment hub
• Safety interlocked bowl guard and bowl lift
• Nonslip rubber feet
• 6 foot cord and ground plug
