Description
- Motor
1.5 h.p. (1200W), grease packed ball bearing, air-cooled, 230V/50Hz/1Ph, 220V/380V/3Ph. Powerful 1.5HP Heavy Duty Motor for Pizza Dough is available. - Controls
Front-Mounted Control Panel gives easy access in cramped kitchen environments.
Equipped with Emergency Stop Button, Start Button and Mechanical Timer are as standard. Digital Timer Panel is optional. - Cord and Plug
Both single-phase and three-phase are hard-wired - Transmission
Heat-treated, hardened alloy, precision-milled gears operate with planetary action. Gears are packed in long-lasting, high-pressure grease. Planetary gears are driven by an oversized cog-wheel, which is in turn driven by a cogged belt powered by the motor drive shaft. The cogged belt is a long-lasting, rugged fiber/rubber composite. This unique design yields high-torque mixing power while avoiding the high cost encountered in repairing direct-drive transmission components. - Speeds(Agitator rpm)
Low Speed 90
Intermediate Speed 161
High Speed 291 - Bowls and Agitators
Standard equipment includes a 40Qt. (40L) high-quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy Wheel on the body column raises and lowers the bowl as well as locks in place at the top and bottom positions. - Attachments
Standard is the No. 12 hub for powering a standard-size vegetable slicer/cheese shredder and a standard-size meat mincer/grinder. - Finish
Top (transmission cover): metallic bronze epoxy enamel
Bottom: metallic gray epoxy enamel - Shipping Information
N.W. 260kgs
G.W. 280kgs - Size: (L x W x H)

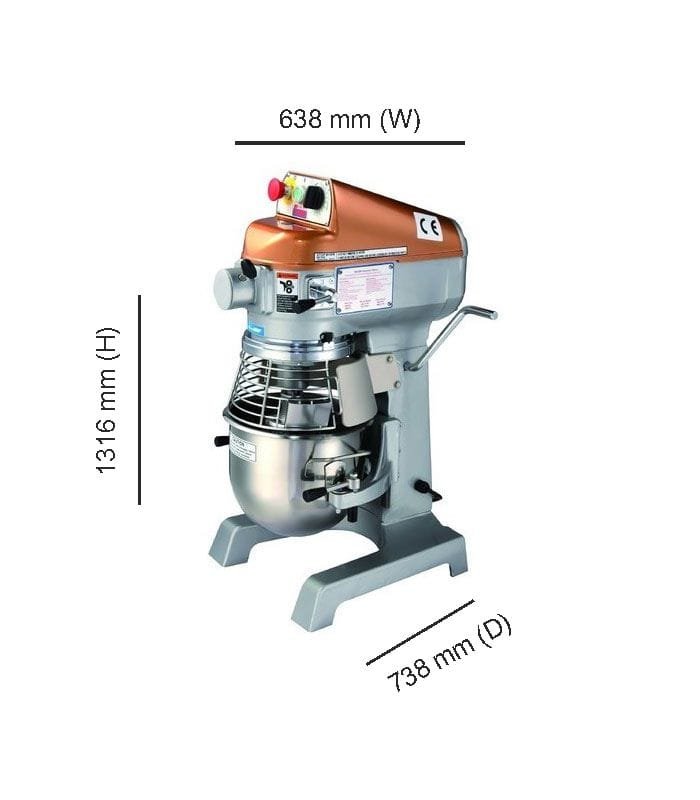

638mm x 738mm x 1,316mm
