● Motor
3 HP (1500W), grease packed ball bearing, air-cooled,
230V/50Hz/1Ph, 220V/380V/3Ph
● Controls
Spar Mixer controls are front-mounted to give easy access in cramped kitchen environments. The follow ing controls are standard on all Spar Mixers: separate start and emergency stop buttons so operators can shut down the mixer immediately in an emergency situation, a 15-minute timer which shuts off the machine after set time has elapsed, and thermal overload protection
● Cord and Plug
Both single phase and three phase are hard wired
● Transmission
Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by an oversized cog-wheel, which is in turn driven by a cogged belt powered by the motor drive shaft. Cogged belt is a long-lasting, rugged fibre/rubber composite. This unique design yields high-torque mixing power while avoiding the high cost encountered repairing direct-drive transmission components.
● Weight: 310 kg

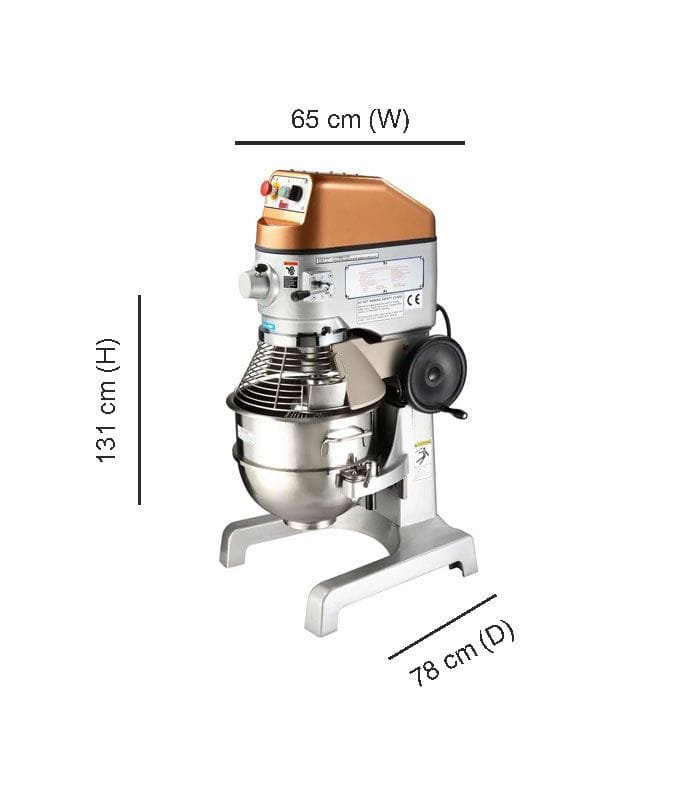

● Dimensions: 78 × 65 × 131 cm
● Brand: SPAR
● Speed
Low Speed: Agitator rpm-99, Slicer/Grinder rpm-60
Intermediate Speed: Agitator rpm-176, Slicer/Grinder rpm-108
High Speed: Agitator rpm-320, Slicer/Grinder rpm-197
- Powerful 3 HP custom-built motor
- Three fixed speeds
- High torque transmission
- Heat-treated hardened steel alloy gears and shafts
- Permanently lubricated transmission
- Thermal overload protection
- Rigid cast iron body
- Stainless steel bowl guard with a built-in ingredient chute
- NSF approved enamel grey paint (optional)
- Front-mounted controls
- 15-minute timer
- Industry-standard #12 attachment hub
- Safety interlocked bowl guard and bowl lift
- Non-slip rubber feet
- 6-foot cord, no plugStandard Accessories
• 60 quart stainless steel bowl
• Flat beater (aluminum)
• Stainless steel wire whip
• Spiral dough hook (aluminum)
• Bowl truck
